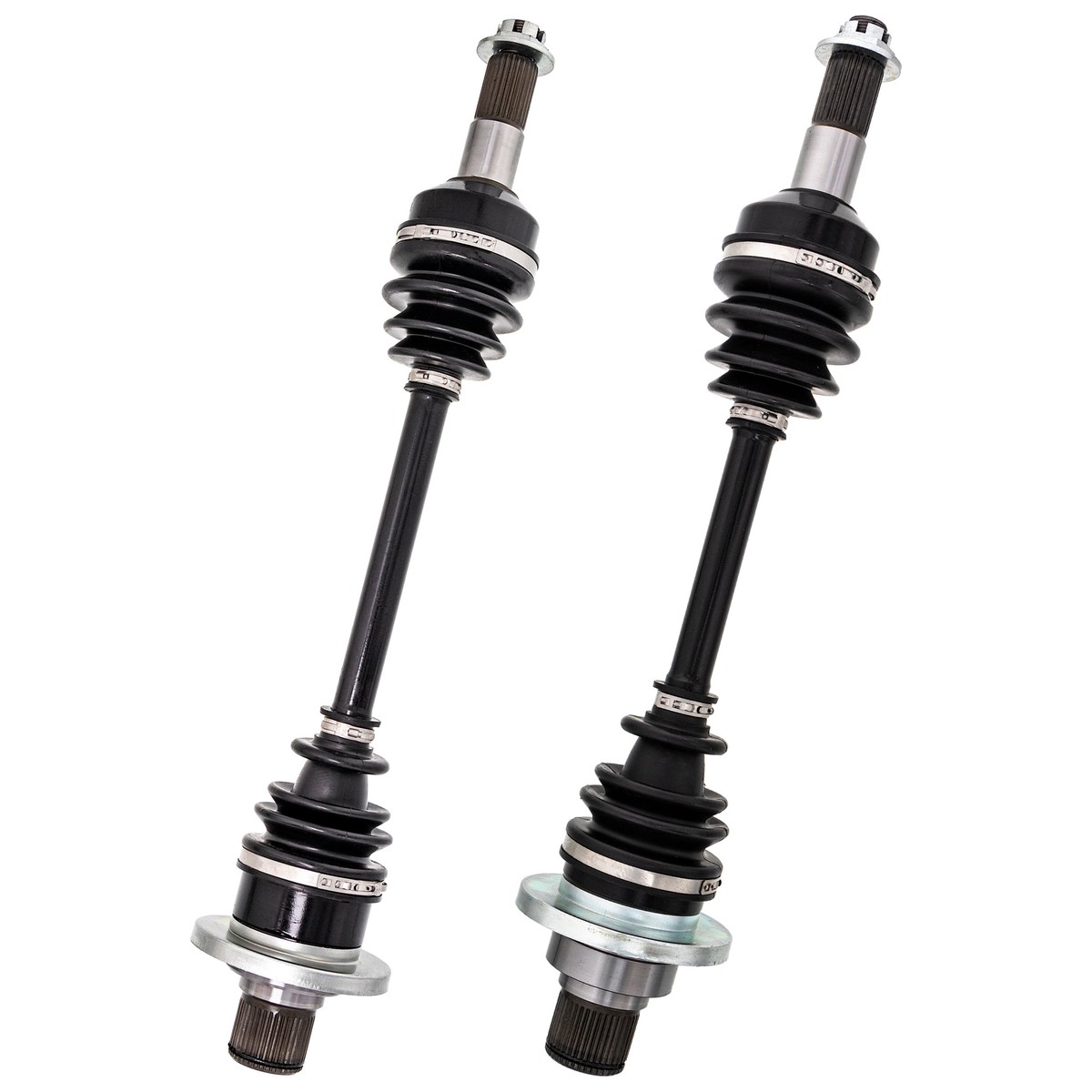

MK1000993 High Strength Rear CV Axle Set Product Info:

• Rear Left Compressed Length 20 13/16, Inboard Splines 39T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement M20x1.5
• Rear Right Compressed Length 19, Inboard Splines 39T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement M20x1.5

Included in This Kit:

(QTY 1) NICHE 519-KCA2223X Rear Left Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 5KM-2530W-12-00, 5KM-2530W-11-00, 5KM-2530W-10-00, 5KM-2530U-13-00, 5KM-2530U-12-00, 5KM-2530U-11-00, 5KM-2530U-10-00

(QTY 1) NICHE 519-KCA2224X Rear Right Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 5KM-2530V-12-00, 5KM-2530V-11-00, 5KM-2530V-10-00, 5KM-2530T-13-00, 5KM-2530T-12-00, 5KM-2530T-11-00, 5KM-2530T-10-00

Compatible with the Following Vehicles:

Yamaha Grizzly 660 4X4: 2003-2008
Yamaha Grizzly 660 Ducks Unlimited Edition 4X4: 2006
Yamaha Grizzly 660 Hunter Edition 4X4: 2003-2008
Yamaha Grizzly 660 Limited Edition 4X4: 2003-2004
Yamaha Grizzly 660 Outdoorsman Edition 4X4: 2006
Yamaha Grizzly 660 Special Edition 4X4: 2005-2006
Yamaha Grizzly 660 Wetlands Hunter Edition 4X4: 2003-2005
